Interactive Image Measurement

= Measuring instrument using multi-layer technology for measuring and labelling recorded images in two dimensions

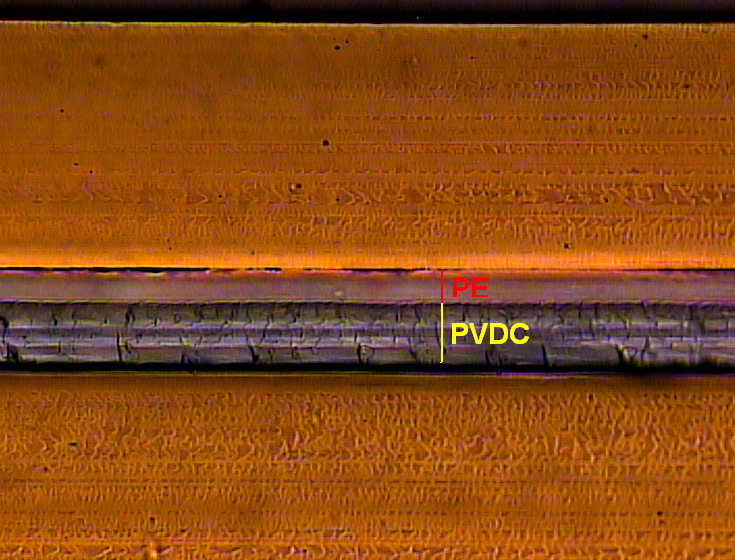

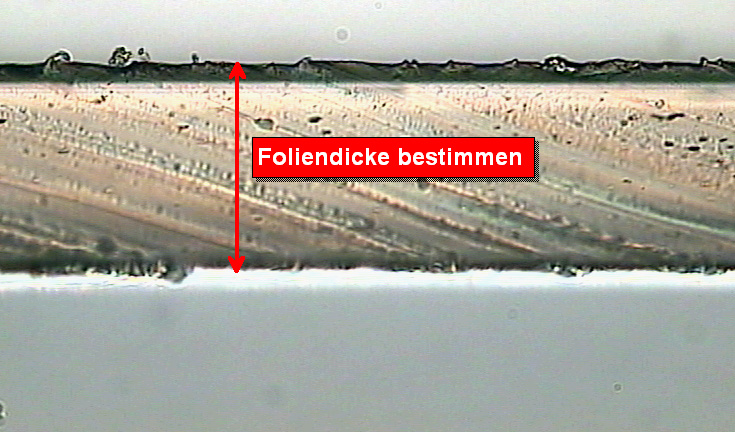

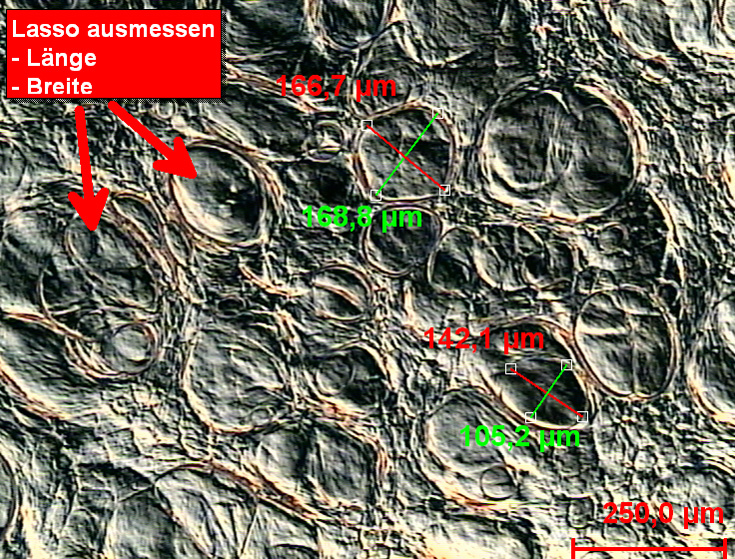

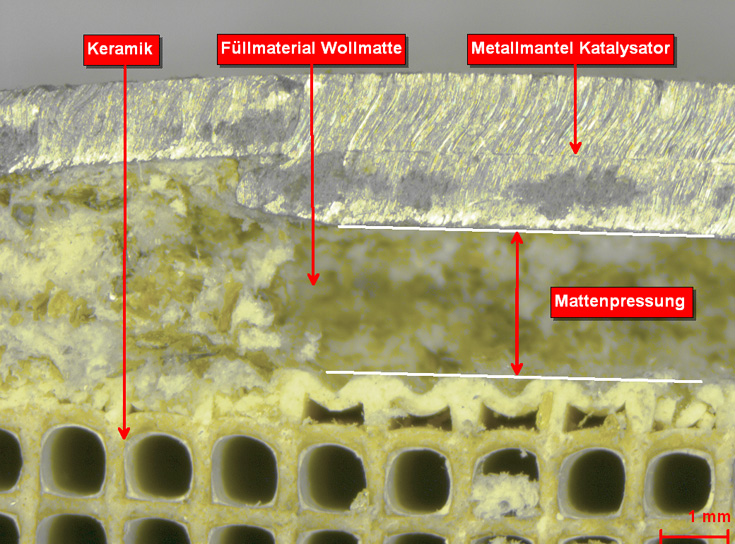

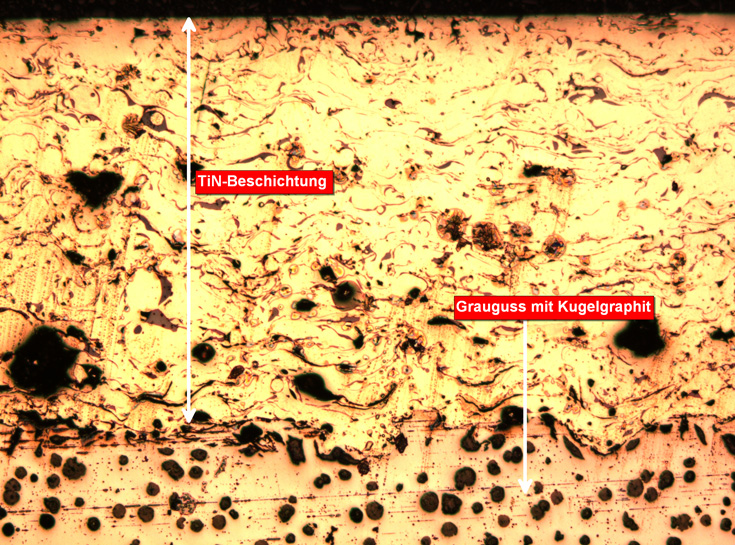

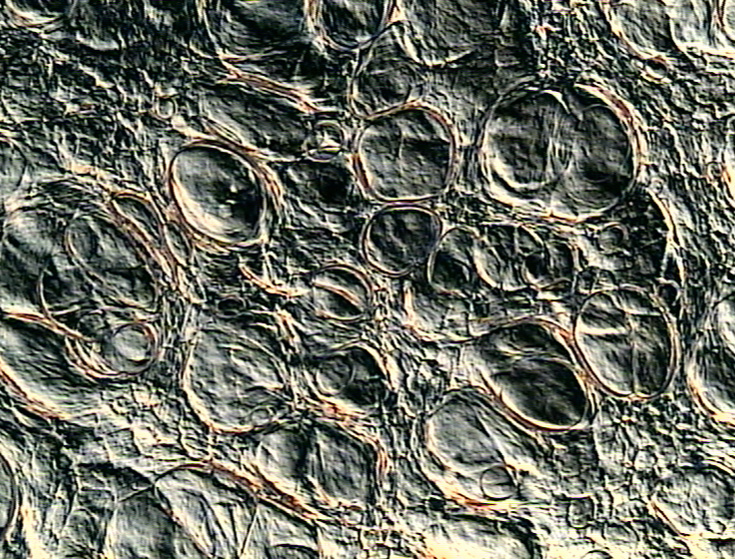

Method: microscopic evaluation of micrographic images in metallography – measurements and texts are located in a drawing plane on top of the image

Applications:

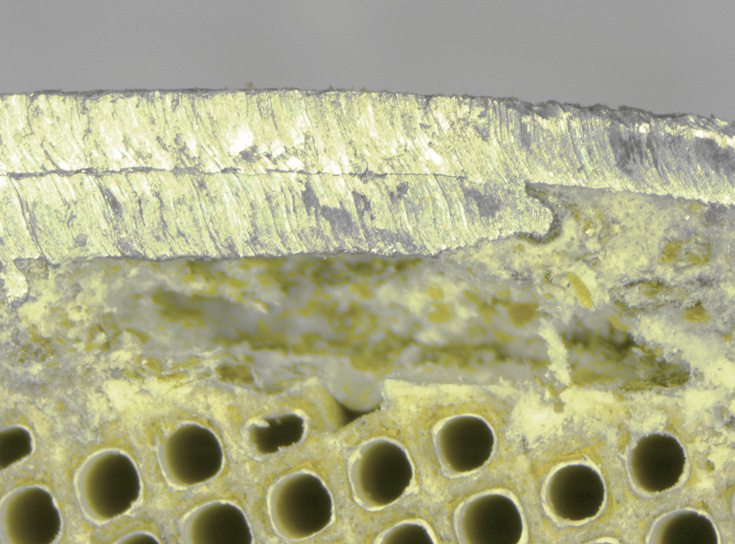

  • Damage analysis
  • QA laboratories that carry out materials testing

Data-sheet

Measurement (PDF: 284 KB) Download
